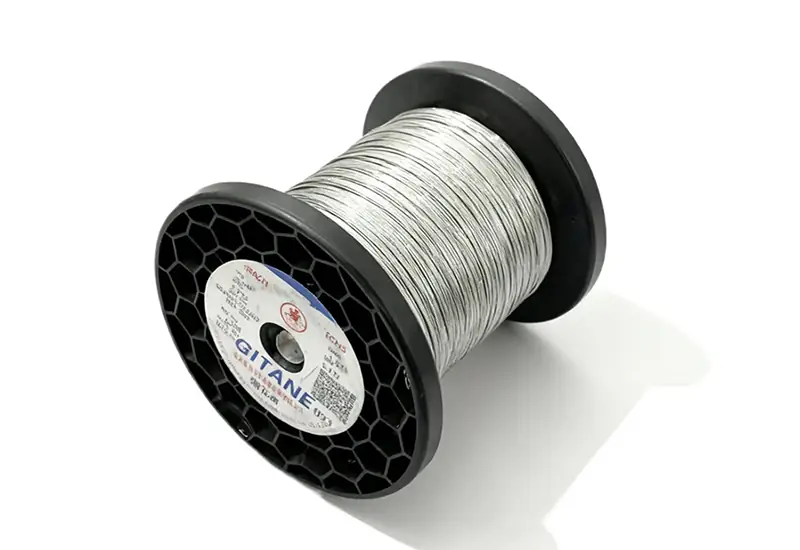

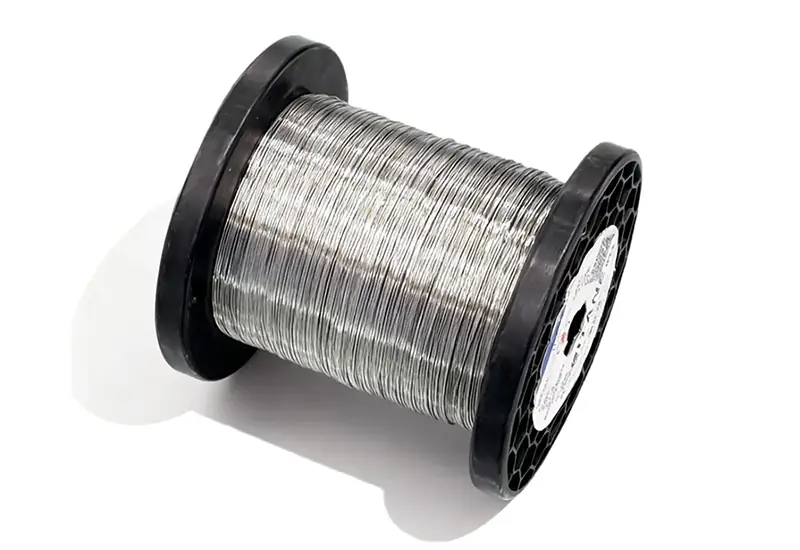

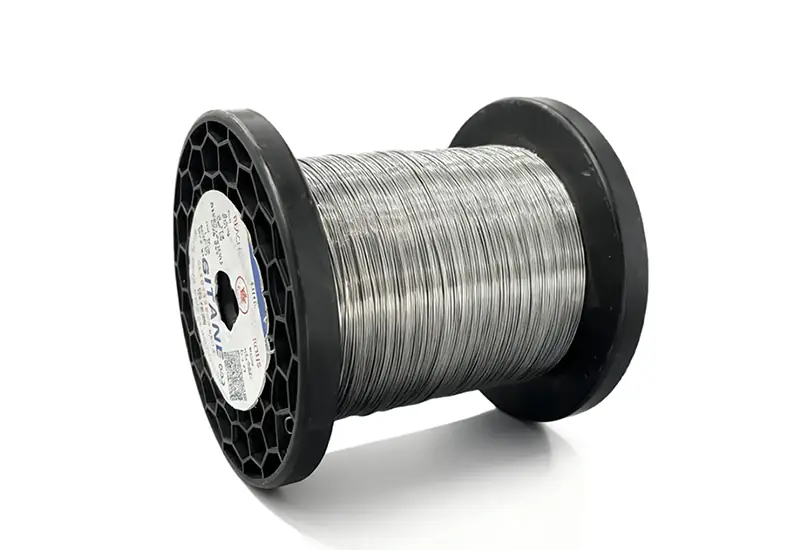

SPARK HRE 1350℃ High-Performance FeCrAl Resistance & Electric Heating Wire
The SPARK HRE brand electric heating alloy is an independently developed, high-performance material by Shougang Gitane, designed specifically for extreme thermal environments. Engineered to operate continuously at temperatures up to 1350℃, HRE is a cornerstone in the field of high-temperature furnace technology.
Product Introduction
By utilizing advanced smelting and refining processes, HRE forms a dense, protective oxide film on its surface, which significantly enhances its oxidation resistance and extends its service life. This series fills a critical gap in domestic electric heating alloy materials for applications above 1350℃, offering independent intellectual property and world-class reliability for both powder metallurgy and diffusion furnace systems.
Product Features
Extreme High-Temperature Resistance: Capable of stable operation in high-temperature environments up to 1350℃.
Excellent Oxidation Resistance: Quickly forms a dense Al₂O₃ protective film to resist high-temperature oxidation and corrosive media.
Superior Flexibility: Features excellent entanglement and flexibility at room temperature, making it easy to process into complex shapes.
High Resistivity: A stable resistivity of 1.45±0.07 Ω·mm²/m allows for high power density design and energy efficiency.
Strong Deformation Resistance: Optimized alloy structure provides high resistance to high-temperature deformation (Collapse Resistance).
Long Service Life: Proven through “Rapid Test Life” standards, offering extended reliability in continuous and cycling heating applications.
Excellent Oxidation Resistance: Quickly forms a dense Al₂O₃ protective film to resist high-temperature oxidation and corrosive media.
Superior Flexibility: Features excellent entanglement and flexibility at room temperature, making it easy to process into complex shapes.
High Resistivity: A stable resistivity of 1.45±0.07 Ω·mm²/m allows for high power density design and energy efficiency.
Strong Deformation Resistance: Optimized alloy structure provides high resistance to high-temperature deformation (Collapse Resistance).
Long Service Life: Proven through “Rapid Test Life” standards, offering extended reliability in continuous and cycling heating applications.
Technical Parameters
| Property Item | Unit | SPARK HRE Data |
| Max. Continuous Operating Temperature | ℃ | 1350 |
| Nominal Composition - Cr | % | 23 |
| Nominal Composition - Al | % | 5.8 |
| Nominal Composition - Fe | % | Balance |
| Electrical Resistivity (20℃) | Ω·mm²/m | 1.45 ± 0.07 |
| Ct (Temperature Coefficient) - 800℃ | - | 1.03 |
| Ct (Temperature Coefficient) - 1000℃ | - | 1.04 |
| Ct (Temperature Coefficient) - 1200℃ | - | 1.04 |
| Density | g/cm³ | 7.1 |
| Specific Heat Capacity | kJ/kg | 0.46 |
| Melting Point | ℃ | 1500 |
| Tensile Strength (Room Temp) | MPa | 680 |
| Tensile Strength (900℃) | MPa | 35 |
| Hardness | Hv | 230 |
| Elongation | % | 20 |
| Magnetism | - | Ferromagnetism |
| Emissivity | - | 0.7 |
| Thermal Conductivity (20℃) | W/(m·K) | 13 |
Application fields
SPARK HRE is widely recognized across high-end clean energy and high-precision industrial sectors:
Technical Support
GITANE provides comprehensive technical backing to ensure the optimal performance of HRE:
Why Choose Us?
Proprietary Technology: Independently developed HRE fills a domestic gap for alloys above 1350℃ with full intellectual property rights.
Shougang Group Foundation: Formerly known as Beijing Steel Wire Plant (since 1956), leveraging over 60 years of metallurgy R&D.
Global Authority: Shougang Gitane holds over 80% of the domestic market share for high-end electric heating alloys, ranking 2nd globally.
Certified Precision: ISO9001 certified; holders of 70+ patents and leaders in 6 national standards.
Customization Capability: Advanced CNC winding and production lines capable of producing ultra-fine fibers and custom-bent strips.
Shougang Group Foundation: Formerly known as Beijing Steel Wire Plant (since 1956), leveraging over 60 years of metallurgy R&D.
Global Authority: Shougang Gitane holds over 80% of the domestic market share for high-end electric heating alloys, ranking 2nd globally.
Certified Precision: ISO9001 certified; holders of 70+ patents and leaders in 6 national standards.
Customization Capability: Advanced CNC winding and production lines capable of producing ultra-fine fibers and custom-bent strips.
Available product specifications
| Form | Specification Range |
| Round Wire / Linear | Various diameters (Customizable) |
| Ultra-Fine Fibers | Diameter < 0.02 mm (For low-nitrogen combustion) |
| Thick & Thin Strips | Precision width and thickness for high power density |
| Processing Services | Precision pre-wound spirals and custom shapes |
| Packaging | Plastic/foam + reinforced wooden cases (+ iron plates for long-distance) |
