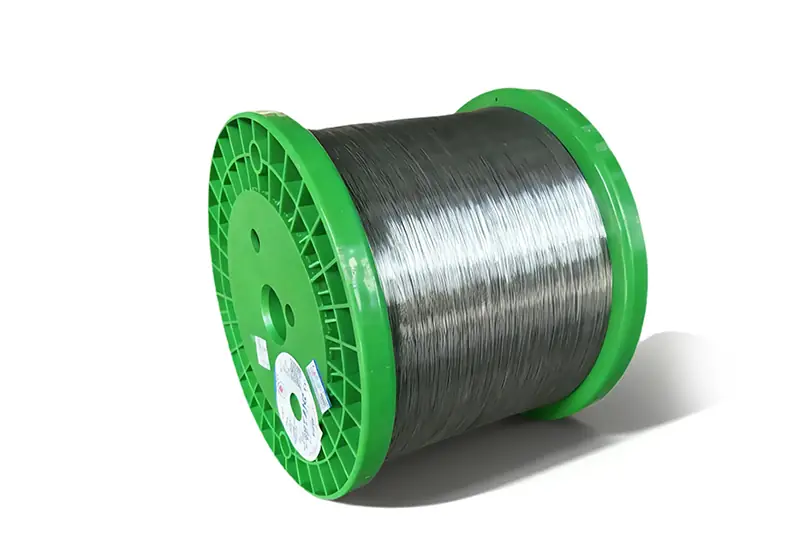

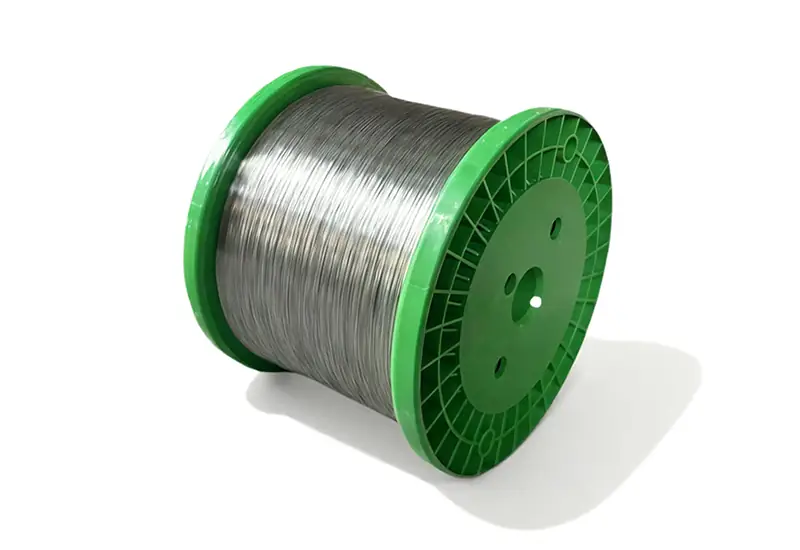

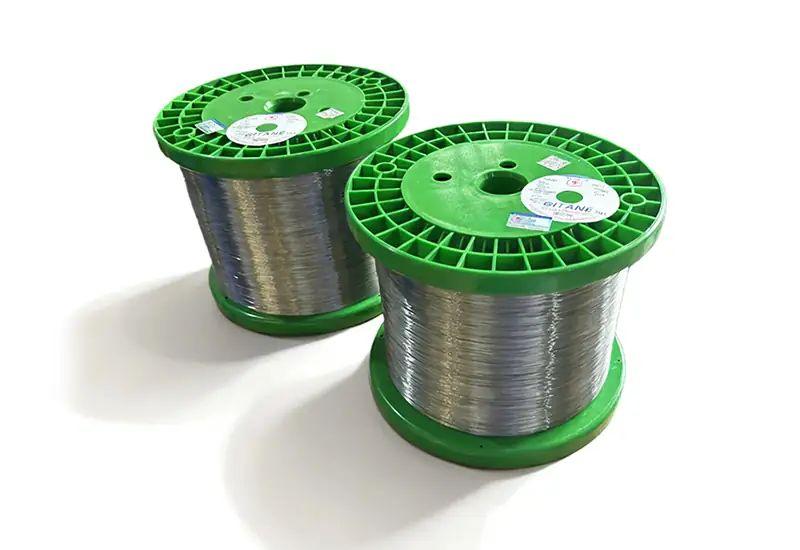

SPARK 00Cr20Al6 High-Performance Electric Heating Wire (1350℃)
SPARK 00Cr20Al6 is a premium ultra-low carbon, high-temperature oxidation-resistant alloy primarily composed of Iron, Chromium (20%), and Aluminum (6%). Developed by Shougang Gitane, this alloy is specifically engineered for industrial environments requiring long-term stability and extreme thermal resistance up to 1350℃.
Product Introduction
Unlike traditional nickel-based alloys, 00Cr20Al6 provides a highly cost-effective solution without compromising on mechanical strength or corrosion resistance. It is an indispensable material choice for manufacturing boiler components, gas turbine blades, and high-temperature heat treatment equipment, meeting the most rigorous international industrial standards.
Product Features
Excellent Oxidation Resistance: The 6% Aluminum content enables the formation of a dense, protective alumina film, preventing performance degradation in extreme heat.
Ultra-High Temperature Stability: Supports long-term use at temperatures up to 1350℃ with minimal resistance drift.
Cost-Effective Solution: As a nickel-free alloy, it provides high corrosion resistance and mechanical strength at a more competitive price point than high-nickel alternatives.
Advanced Production Technology: Manufactured using Gitane’s precision smelting and refining processes to ensure uniform alloy composition.
Superior Processing Capability: Supplied in various forms, including linear wire, thick strips, and thin strips, suitable for complex element designs.
Environmental Resilience: Optimized for clean energy sectors, including solar PV and semiconductor heat treatment.
Ultra-High Temperature Stability: Supports long-term use at temperatures up to 1350℃ with minimal resistance drift.
Cost-Effective Solution: As a nickel-free alloy, it provides high corrosion resistance and mechanical strength at a more competitive price point than high-nickel alternatives.
Advanced Production Technology: Manufactured using Gitane’s precision smelting and refining processes to ensure uniform alloy composition.
Superior Processing Capability: Supplied in various forms, including linear wire, thick strips, and thin strips, suitable for complex element designs.
Environmental Resilience: Optimized for clean energy sectors, including solar PV and semiconductor heat treatment.
Technical Parameters
| Property Item | Unit | 00Cr21Al6 Specification Data |
| Max. Continuous Operating Temp | ℃ | 1300 |
| Nominal Composition - Chromium (Cr) | % | 20 |
| Nominal Composition - Aluminum (Al) | % | 5.5 |
| Nominal Composition - Iron (Fe) | % | Balance |
| Electrical Resistivity (20℃) | Ω·mm²/m | 1.45 |
| Density | g/cm³ | 7.1 |
| Melting Point | ℃ | 1500 |
| Specific Heat Capacity | kJ/kg | 0.46 |
| Tensile Strength (Room Temp) | MPa | 750 |
| Hardness | Hv | 230 |
| Elongation | % | 17 |
| Magnetism | - | Ferromagnetism |
| Thermal Conductivity (20℃) | W/(m·K) | 13 |
Application fields
00Cr20Al6 is a versatile material designed for high-end clean energy and industrial sectors:
Technical Support
GITANE provides deep technical expertise for the SPARK series:
Why Choose Us?
Shougang Group Legacy: Formerly known as Beijing Steel Wire Plant, with over 50 years of specialized metallurgical history.
Innovation Leader: Developed China’s first FeCrAl heating wire; holder of over 70 patents and leader of 6 national standards.
Global Authority: Our high-end alloys hold over 80% of the domestic market share, ranking 2nd globally.
Quality Assurance: ISO9001 certified since 2003, with strict pre-production sampling and 100% final inspection protocol.
Advanced Manufacturing: State-of-the-art facilities located in Zhongguancun Science and Technology Park, Beijing.
Innovation Leader: Developed China’s first FeCrAl heating wire; holder of over 70 patents and leader of 6 national standards.
Global Authority: Our high-end alloys hold over 80% of the domestic market share, ranking 2nd globally.
Quality Assurance: ISO9001 certified since 2003, with strict pre-production sampling and 100% final inspection protocol.
Advanced Manufacturing: State-of-the-art facilities located in Zhongguancun Science and Technology Park, Beijing.
Available product specifications
| Form | Dimension / Range |
| Linear Wire | Various diameters for industrial and precision use |
| Thick / Thin Strips | Customizable thickness for high-power applications |
| Ultra-Fine Fibers | Diameters < 0.02mm for low-nitrogen combustion |
| Custom Elements | Support for customized shapes (Spiral, U-shape, etc.) |
| Delivery Terms | FOB; Support for multiple currencies (USD, EUR, CNY.) |
