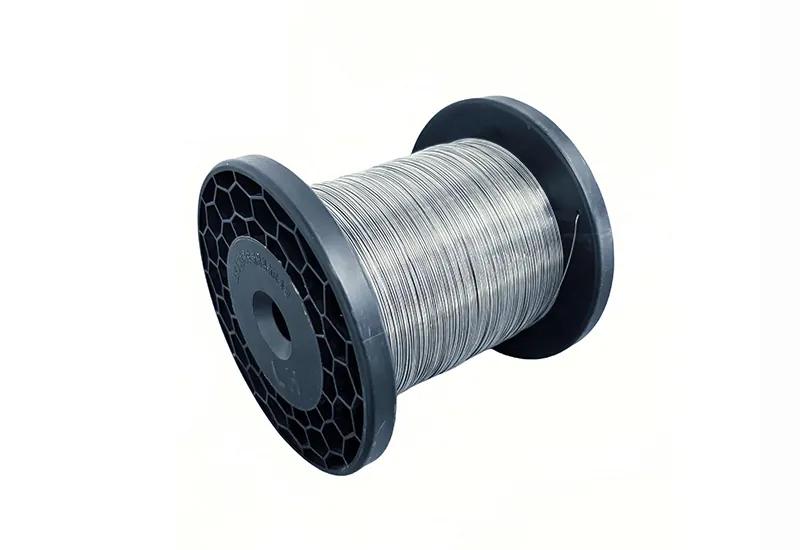

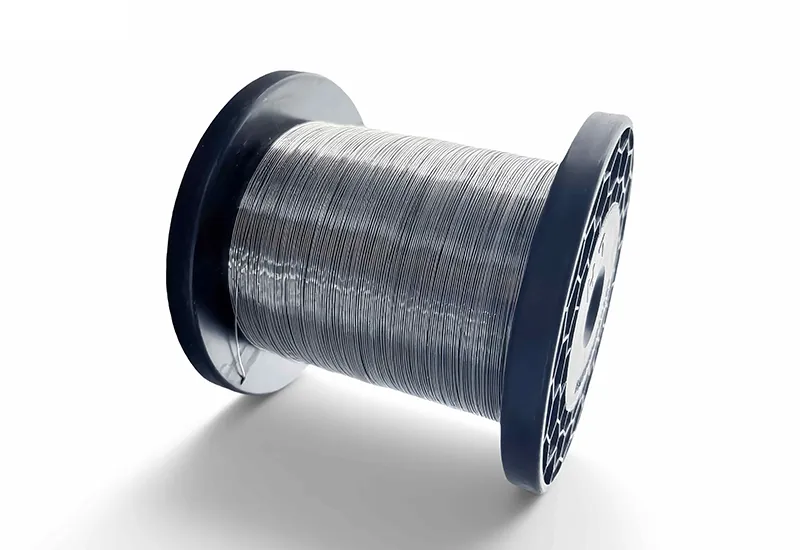

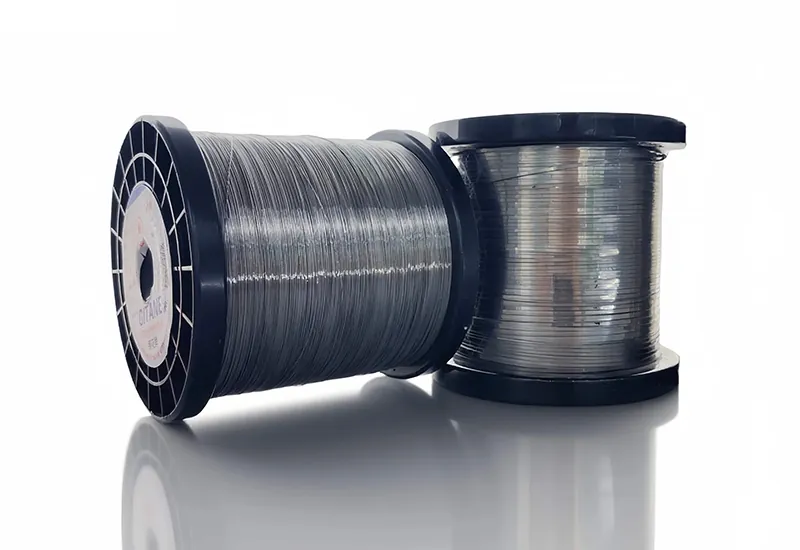

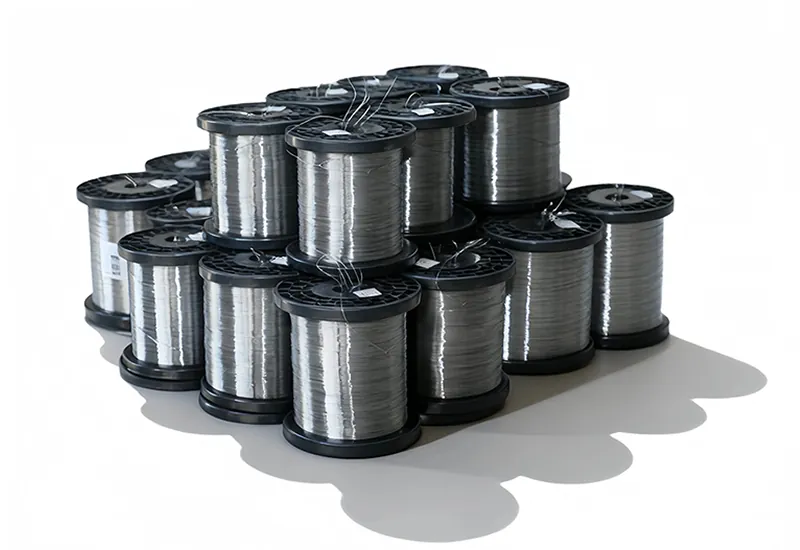

SPARK SGHT Ultra-High Temperature Electric Heating Alloy (Fe-Cr-Al)
SGHT is a high-end Iron-Chromium-Aluminum (Fe-Cr-Al) ultra-high temperature electric heating alloy developed by Shougang Gitane. Diverging from traditional smelting methods, SGHT utilizes refined master alloys and advanced powder metallurgy technology. This process involves high-temperature hot isostatic pressing to produce billets, followed by precision cold and hot processing.
Product Introduction
Specifically designed for extreme environments, SGHT can operate at temperatures up to 1420℃. In June 2020, Shougang Gitane successfully developed the first domestic ultra-high temperature Fe-Cr-Al tube using this technology, bridging a critical gap in the high-end electric heating alloy field and reaching world-class standards.
Product Features
Extreme Temperature Resistance: Capable of stable operation in environments up to 1420℃.
Advanced Powder Metallurgy Process: Ensures superior uniformity of grain structure and precise distribution of trace elements compared to traditional smelting.
Excellent Creep Resistance: The heating elements exhibit minimal creep at high temperatures, ensuring dimensional stability.
High Corrosion & Oxidation Resistance: Optimized for harsh conditions, including corrosive and carbon atmospheres.
Stable Resistance: Maintains consistent resistance levels throughout its long service life, even under high power density.
High-Temperature Strength: Exceptional mechanical strength at peak temperatures allows for repeated use as structural components.
Advanced Powder Metallurgy Process: Ensures superior uniformity of grain structure and precise distribution of trace elements compared to traditional smelting.
Excellent Creep Resistance: The heating elements exhibit minimal creep at high temperatures, ensuring dimensional stability.
High Corrosion & Oxidation Resistance: Optimized for harsh conditions, including corrosive and carbon atmospheres.
Stable Resistance: Maintains consistent resistance levels throughout its long service life, even under high power density.
High-Temperature Strength: Exceptional mechanical strength at peak temperatures allows for repeated use as structural components.
Technical Parameters
Chemical Composition (%)
| Element | Content (%) | Element | Content (%) |
| Carbon (C) | ≤ 0.04% | Chromium (Cr) | 21.0 - 23.0% |
| Silicon (Si) | ≤ 0.5% | Aluminum (Al) | 5.5 - 6.0% |
| Molybdenum (Mo) | ≤ 0.4% | Iron (Fe) | Remainder |
Tube Dimensional Tolerances
| Pipe Outer Diameter (OD) | Inspection Item | Tolerance Range |
| ≤ 50mm | Outer Diameter | ± 1.5% |
| ≤ 50mm | Wall Thickness | ± 1.5% |
| > 50mm | Outer Diameter | ± 1.0% |
| > 50mm | Wall Thickness | ± 1.5% |
Core Performance Data
| Property Item | Specifications & Performance |
| Maximum Operating Temperature | 1420 ℃ |
| Production Technology | Powder Metallurgy + Hot Isostatic Pressing |
| Surface Finish | Bright surface with precise dimensions |
| Resistant Atmospheres | Corrosive, Carbon, and High Power Density environments |
| Creep Resistance | Excellent (Small creep at high temperatures) |
| Resistance Stability | Stable resistance change over long service life |
Application fields
SGHT is the ideal choice for high-end industrial heating systems:
Technical Support
Why Choose Us?
Industry Pioneer: Developed China’s first ultra-high temperature Fe-Cr-Al pipe in 2020.
Powder Metallurgy Expertise: Mastered the modern process of producing billets via high-temperature hot isostatic pressing.
60+ Years of Research: Specialized manufacturer since 1956 with a strong technical duty (30% of employees).
Global Reach: Products sold in over 10 regions, including North America, Western Europe, and East Asia.
Certified Quality: ISO9001 certified quality system ensures small output power errors and consistent quality.
Powder Metallurgy Expertise: Mastered the modern process of producing billets via high-temperature hot isostatic pressing.
60+ Years of Research: Specialized manufacturer since 1956 with a strong technical duty (30% of employees).
Global Reach: Products sold in over 10 regions, including North America, Western Europe, and East Asia.
Certified Quality: ISO9001 certified quality system ensures small output power errors and consistent quality.

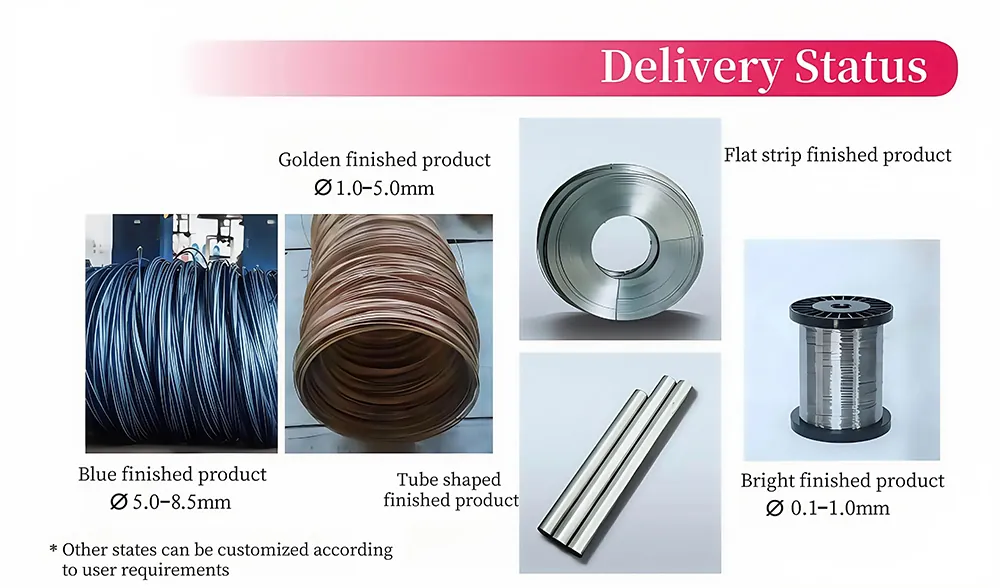

Available product specifications
| Product Form | Dimensional Range |
| Round Wire | Diameter: 0.1mm - 8.5mm |
| Flat Strip | Thickness: 0.5mm - 2.5mm / Width: 5mm - 48mm |
| Finished Tubes | Various ODs and Wall Thicknesses available |
| Custom Helixes | Non-standard spirals based on client drawings |
